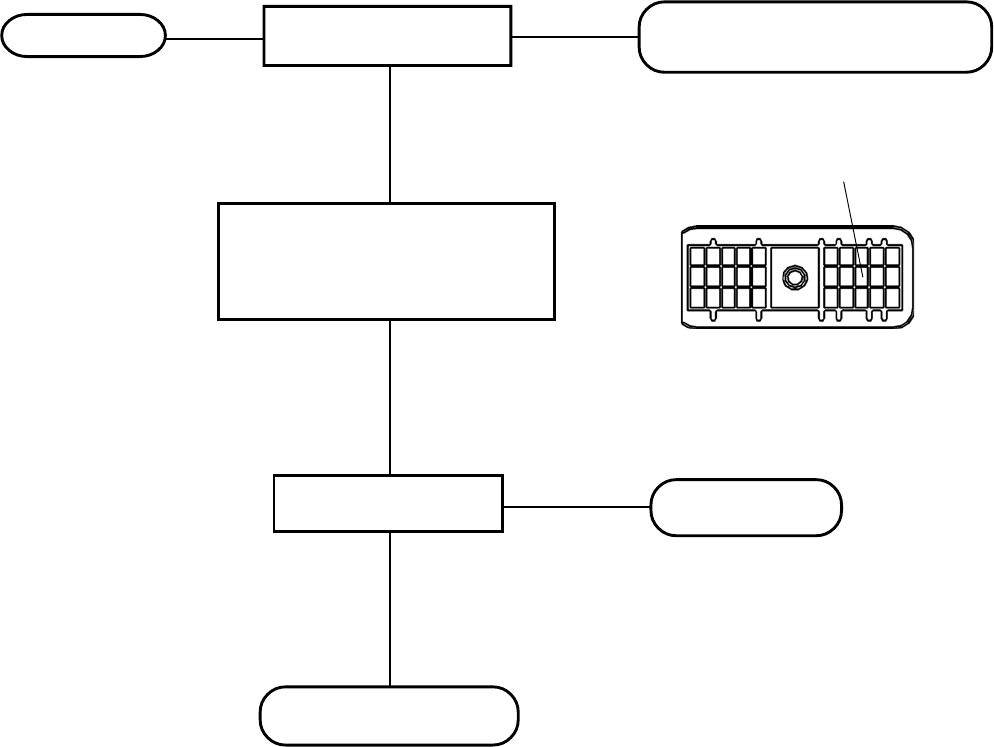

SECTION X - TESTING TRACTION CONTROL DASH LAMP

NO

YES

REPLACE EC-16

™

CONTROLLER

YES

NO

1

2

3

C2

K J H G F E D C B A

REPAIR OR REPLACE WIRE

HARNESS AND RETEST

VEHICLE VOLTAGE

DETECTED?

WITH IGNITION OFF, REMOVE 30 PIN

CONNECTOR FROM EC-16

™

CONTROLLER.

TURN IGNITION ON AND

CHECK FOR VEHICLE VOLTAGE AT

TERMINAL C2.

REPLACE TRACTION DASH LAMP WITH

KNOWN GOOD UNIT. REPEAT "INITIAL

START-UP PROCEDURE"

30 PIN CONNECTOR

IS THIS THE SECOND TIME TO

THIS POINT?

START HERE
