- 18 -

Sensor Calibration

The Sensor Calibration page allows the Lateral Acceleration Sensor (LAS) to be calibrated. The trailer

needs to be on a level surface for the calibration. Press “Start” to begin the calibration process, use the

“Yes, No, or Cancel” choices to answer any questions. Bendix

ACom

Diagnostics software can be used

to recalibrate the lateral acceleration sensor, clear any DTCs and display the actual sensor value.

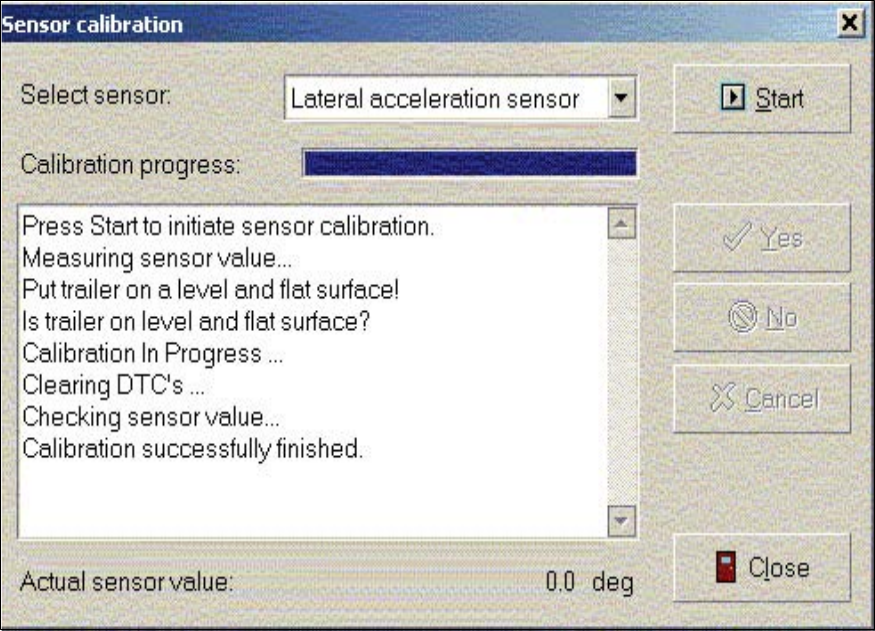

Figure 19

Control Buttons for TRSP Sensors:

• The Start button starts the calibration

• The Yes button is used to acknowledge that the technician is in agreement with the question asked

• The No button is used when the technician disagrees with the question asked

• The Cancel button stops the calibration

• The Close button closes the calibration window
