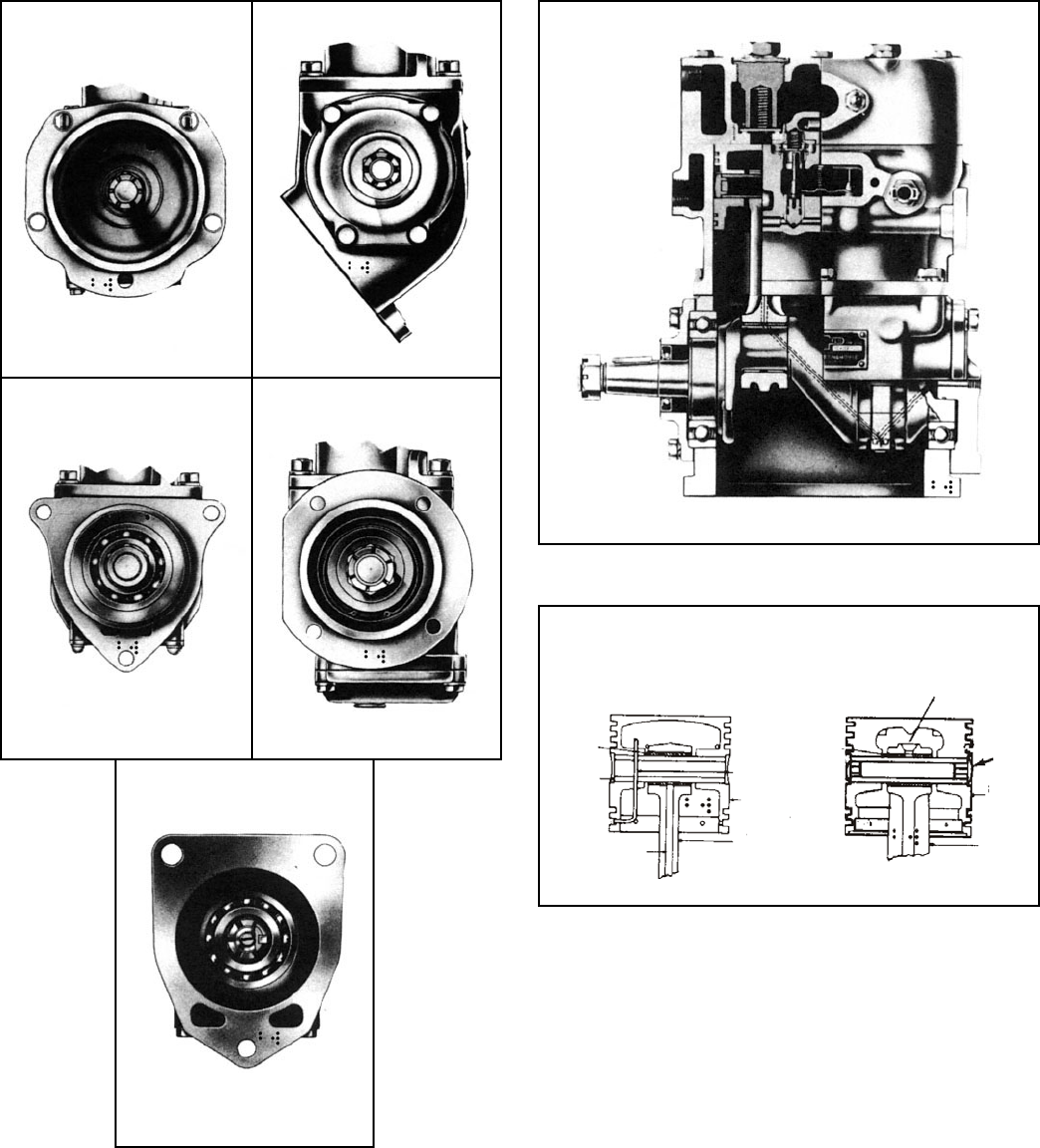

FIGURE 2 - TU-FLO

600 AIR COMPRESSOR SECTIONAL

VIEW

FIGURE 3 - TU-FLO

600 AIR COMPRESSOR PISTON/PIN

DESIGN

FIGURE 1 - FLANGE CONFIGURATIONS

WRIST

BUSHING

WRIST

OIL PASSAGE

WRIST

BUSHING

PISTON WRIST

PIN LOCK WIRE

CAST IRON

PISTON

STEEL

CONNECTING

ROD

“CATCH FUNNEL”

TEFLON

PLUG

DIE

CAST

PISTON

DIE CAST

CONNECTING

ROD

NAME PLATE

A name plate is attached to the crankcase of all

compressors. It shows the piece number, type and serial

number (Fig. 4). A name plate with a black background

denotes a new compressor, whereas a name plate with a

red background designates that the compressor is a factory

reconditioned unit. All compressors are identified by the piece

number which is the number to be used when reference is

made to a particular compressor. The type and serial number

is supplementary information.

OLD DESIGN

NEW DESIGN

1 2 3 4 5 6 7 ... 35 36

600 Air Compressor 1
NAME PLATE 2
OPERATION 3
AIR CLEANER MAINTENANCE 5
AIR LEAKAGE TESTS 6
REMOVING AND INSTALLING 6
DISASSEMBLY 6
PREVENTATIVE MAINTENANCE 7
FIGURE 13 - TU-FLO 8
FIGURE 14 - TU-FLO 8
LUBRICATION 9
INSPECTION OF PARTS 9
ASSEMBLY 11
TABULATED DATA 13
COMPRESSOR TROUBLESHOOTING 13
THESE INSTRUCTIONS TO AVOID 13
PERSONAL INJURY OR DEATH: 13
Test Procedures 15
(Supply Reservoir) 16
Vehicle Used for: 17
BASIC Test 18
(Bendix kit P/N 5013711) 20
Kinked discharge line shown 24
Dash gauges 24
Partly collapsed 24
Technician removes 26
Testing for leaks 27
Compressor Air Dryer 28
Discharge Inlet 28
Fitting Fitting 28
Tests (continued) 29
Air System Inspection Cup 30
(BASIC) Test Information 30
STEP A - Select one: 31
(if the number of days is 32
Technical Bulletin 33
