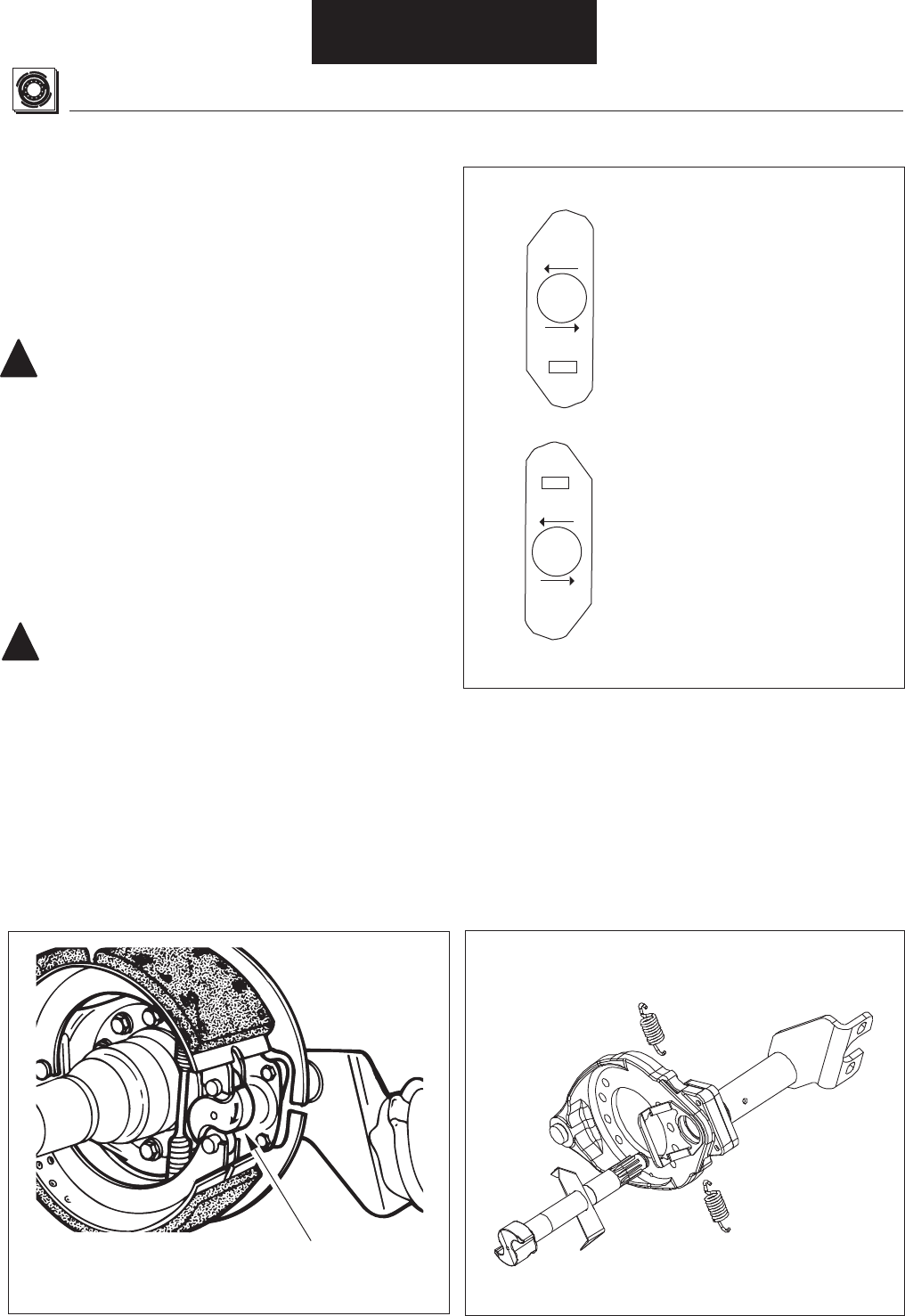

Figure 53. Cam Head Washer Installation

Camshaft Installation

Figure 52. Camshaft Installation

Installation / Assembly

1.

nspection - Camshaft Inspection.

NOTE: 





CAUTION:



2. 







3.



CAUTION:





4.

SPECIAL NOTE: 









SPECIAL NOTE









ES-165-5,6,7D,L

Rotate Camshaft

Tow ard Pushrod

Extension . . .

. . . Roller Should

Ride Up on Convex

Side of Cam Head

Cast Spider. Position

Cam Head Washer

Under Cam Head With

“CAST SPIDER” Arrow

Pointing Toward Center

of Spider.

Note For ES-150-8D & 6D:

position cam head washer

under cam head with

"CAST SPIDER" arrow

pointing away from center

of spider.

Stamped Spider. Position

Cam Head Washer

Under Cam Head With

“STAMPED SPIDER” Arrow

Pointing Toward Center

of Spider.

STAMPED

SPIDER

CAST

SPIDER

STAMPED

SPIDER

CAST

SPIDER
