3/3

2/3

1/3

3/3

2/3

1/3

Brake torque

Adjustment

phase (Ce)

Free stroke Elasticity

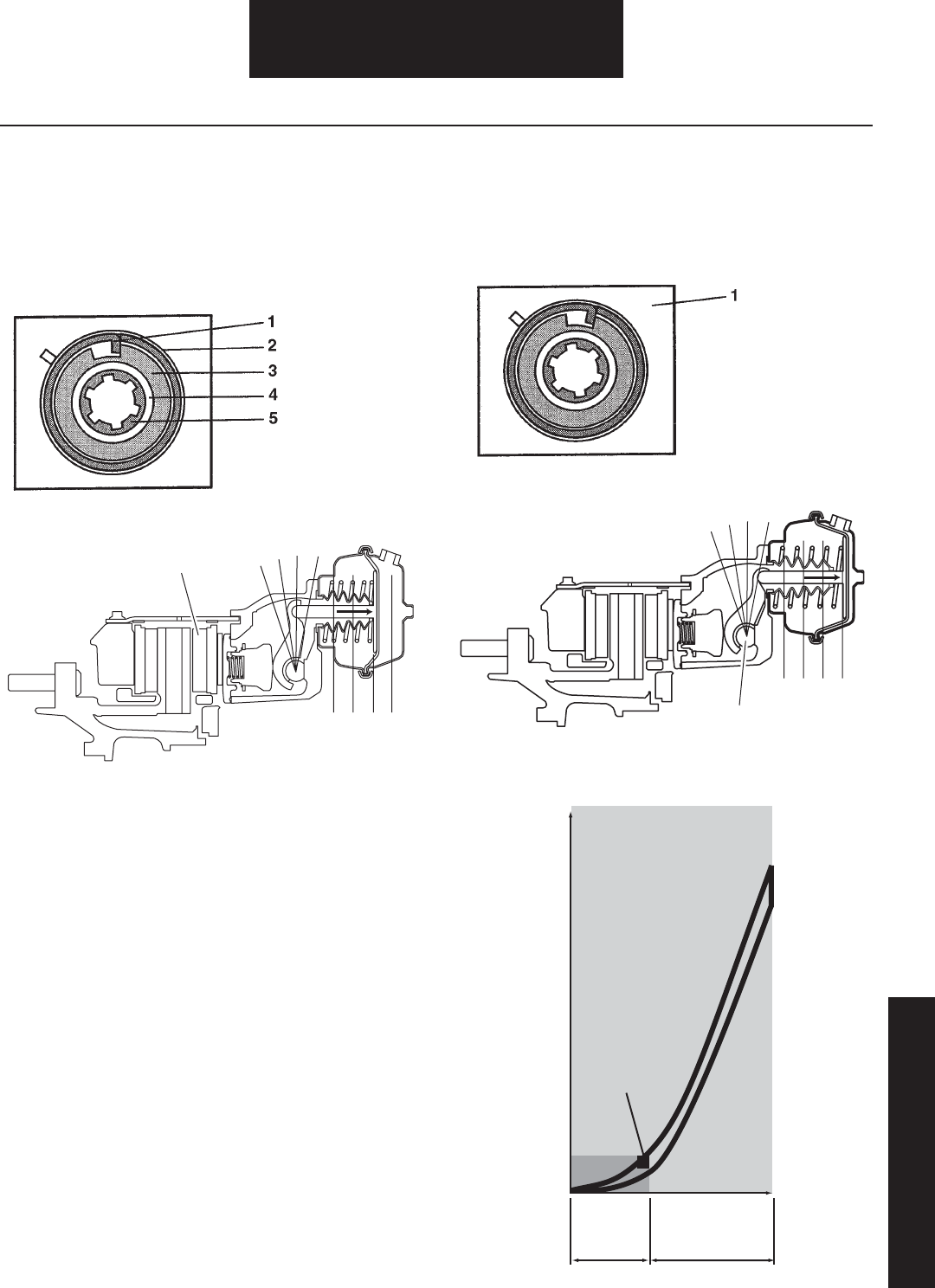

Description of Operation

E - The next part of the return stroke corresponds to E. The

housing of the adjuster, the adjustment spring and companion

sleeve are rotated in relation to the hub, which is stationary.

Movement between companion sleeve and hub is allowed by

the friction spring.

Ce - During the last part of the return stroke (Ce), the rotational

movement continues in the adjuster as described under E until

the mechanism has reached its resting position. The friction

springs on the adjustment screws prevent the mechanism from

backing off.

1 – Adjustment spring 4 – Friction spring

2 – Rotating housing 5 – Hub

3 – Companion sleeve 6 – Inner pad

1 – Adjuster

Description of Operation
