Replacing Pads

1. Check that the brake disc can be turned freely.

2. Using an 8 mm wrench, turn readjustment shaft until both

pads touch brake disc. Then loosen 1/2 turn to obtain a basic

clearance between pads and brake disc. Check that the brake

disc can be turned freely. Remove the socket or wrench.

Note: In order to obtain correct clearance between

brake disc and pads, the adjusting mechanism

itself will perform the ﬁ nal ﬁ ne-adjustment

during a number of braking operations.

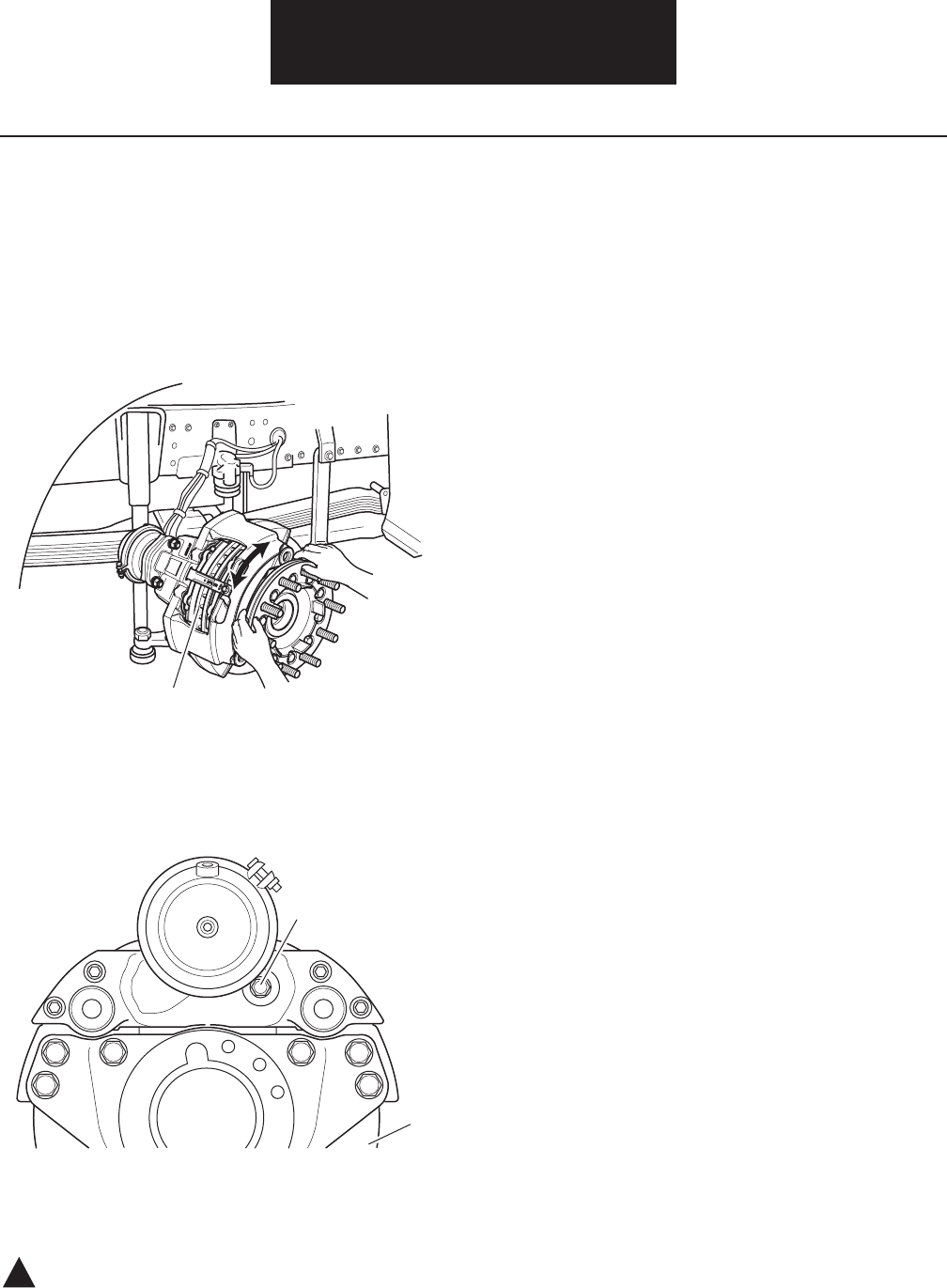

Initial Adjustment

1 – Brake disc

1 – Readjustment shaft

2 – Brake disc

3. Fit plug into access hole readjustment shaft (see Item 1 in the

illustration below).

CAUTION: Never use an impact wrench, as this could

damage the adjusting mechanism.
